PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

Our Products: Pontoon Boat Trailers > Galvanized Pontoon Trailers

SKU: PT24THD/14DISC-DBJ-LED (DISC x 2) - Galv

List Price: $6,025.00

Price: $5,925.00

You Save: $100.00 (2%)

Do you need a Tri-Tube Kit?:
Would you like load guides?:
Would you like plastic bunk wraps?:
Would you like a spare tire?:
Would you like transom tie down straps?:
Is your deck 8' wide or 8'6" wide?:

Add to Cart

PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

(Click to see larger image and other views)

Product Details

* Galvanized trailers have a 4-6 week lead time if not in stock. *

Our Float-On Pontoon Trailers enable you to take your pontoon boat to the water effortlessly. Our pontoon trailers are made in the USA . This pontoon boat trailer is made with galvanized steel that provides excellent corrosion resistance in saltwater applications.

This Tandem Axle Heavy Duty Pontoon Boat Trailer is recommended to fit a 23' - 25' Pontoon Boat. It has a load capacity of 5820lbs with an overall length of 29'. If you are unsure of what size pontoon trailer you need, please click the provided link which will take you to our Pontoon Trailer Selection Guide.

Standard Features Include:

Tandem axle brakes included
Hot Dipped Galvanized Steel

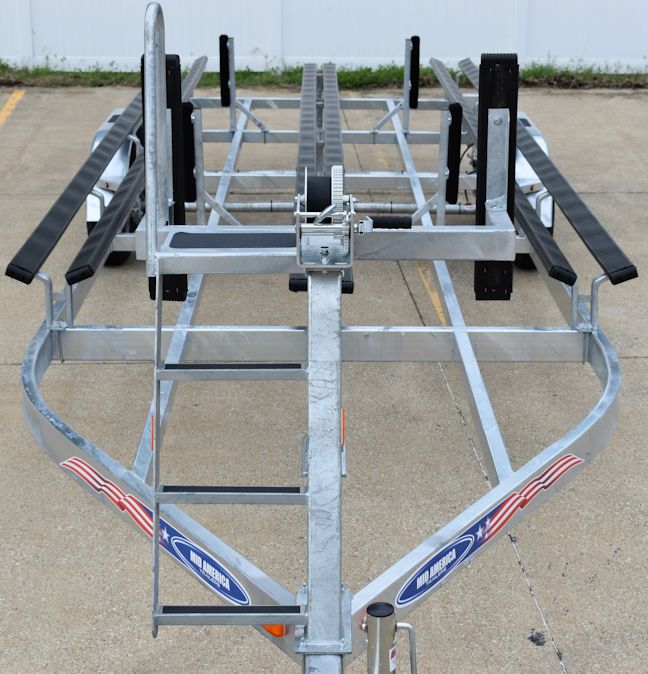

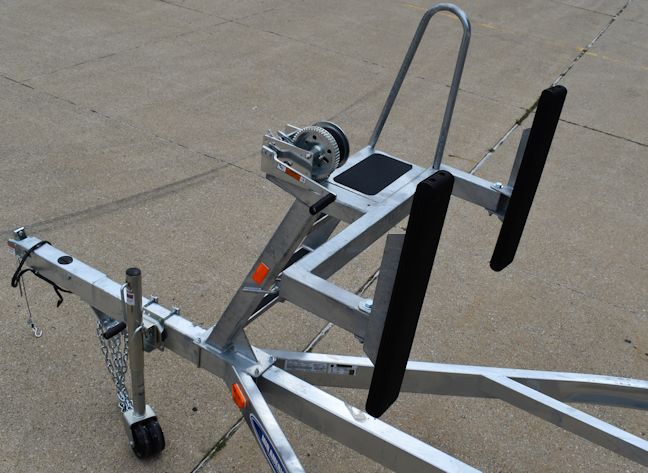

Deluxe winch stand with heavy duty handrail and wider steps allows the boater to climb up easier onto the pontoon boat.
5" frame

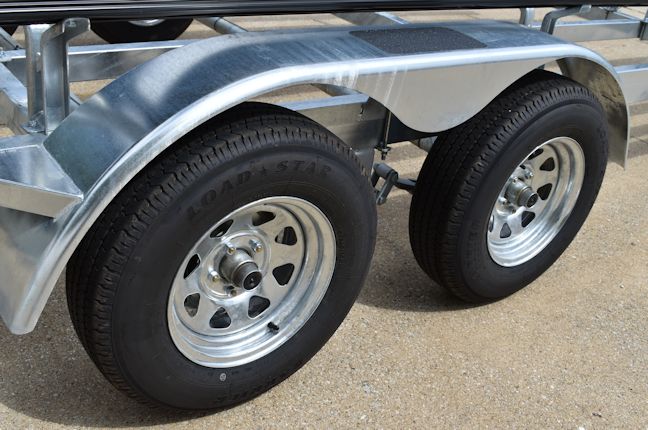

14" ST205/75R14 range C radial tires
Double wheel tongue jack
Safety chains with S-hooks

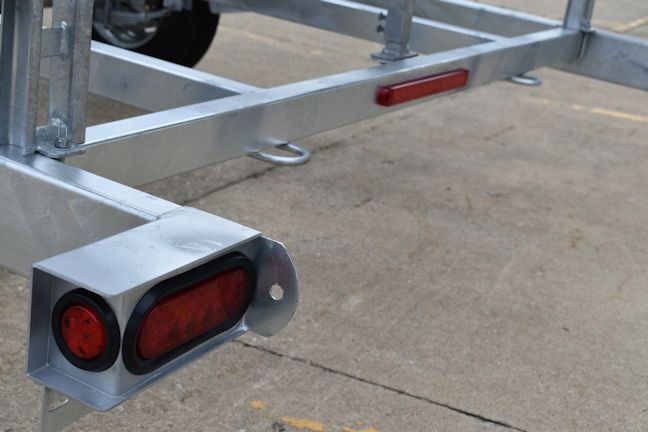

LED lighting
3500 lb. axles
Trailer weight: 1180lbs
Fully adjustable bunks
Surge disk brakes
29' overall length
19' bunk length
2" ball
5-way flat connector for trailer lights (On a 5-way connector, the pin on the end furthest from the ground pin is used as an electric reverse lockout on the trailer coupler. This is so when you put the vehicle in reverse, it will signal a solenoid on the coupler and not apply the brakes so you can back up without the brakes engaging. This feature is on newer trucks/SUVs only. For older models, a brake lockout key is required.)

*Options pictured may not be included as standard features. Please contact us for pricing on additional options.*

We make it very easy to order and customize your new pontoon boat trailer. Please choose from the options above. Once your order is placed, we will call to verify the information and setup a time for local pickup.

Our pontoon trailers are the only product we cannot ship. Our trailers are for local pick up only in Mishawaka, IN or Lebanon MO.

*Indiana sales tax is required.*

PT24THD Tandem Axle Heavy Duty Pontoon Trailer with Brakes - Galvanized #5820 Capacity

(Click to see larger image and other views)

LIMITED WARRANTY

Mid-America Trailer would like to take this opportunity to thank you for choosing our trailer.

Mid-America Trailer Warranty for the original purchaser is for the trailer to be free of material defects & workmanship under normal use. We will not, however, warranty the following items

Damage to carpeted bunk boards. Damage due to lack of grease in bearings and hubs. It is the purchasers responsibility to check and maintain this on a regular basis. Damage to painted finish such as, chips, wear around brackets and fasteners, or damage due to salt exposure.

This trailer warranty must be registered within 30 days of the retail sale. If these requirements are met, Mid-America Trailer will warranty this trailer for 1 year. This warranty will be void if any modifications are made on this trailer by the purchaser. If any warranty work is required, Mid-America Trailer must be contacted prior to any work performed. Warranty labor rates will be limited to $50.00 per hour in order to keep your cost down.

Mid-America Trailer will issue you a warranty claim number and at that time will decide to repair parts or replace them. This decision will be made at Mid-America Trailers discretion. We want to thank you again for choosing Mid-America Trailers. Please fill out the form on this page and mail it back to us or file online here.

Thank You,
RestorePontoon.com

Here at Coastline Inc., we want to make sure you are prepared when picking up your new pontoon trailer.

Please make sure to have the following at the time of pick up -

2" hitch ball for single and tandem axle trailers
2-5/16" hitch ball for triple axle trailers
4-pin flat connector for trailer lights (trailers WITHOUT brakes)
5-pin flat connector for trailer lights (trailers WITH brakes. We sell the 7-way round to 5-way flat adapters. Please contact us for details.)

Check to make sure fuses in the vehicle for the trailer lights are in good working condition.
Tie down straps if you plan on picking up your boat after leaving our location.
Please let us know when you are on your way to pick up your trailer.

We are conveniently located between the Indiana Toll Road and the US-20 Bypass off of IN-331 (Capital Ave.)

1923 N Home St.

Mishawaka, IN 46545

(574)-204-2345

Hours of operation:

Monday-Thursday 9 EST - 5 EST

Friday 9 EST - 4 EST

RestorePontoon.com is located in Mishawaka Indiana. We realized that might be a little too far of a drive so we have provided a few option that our customers can choose from to get a freight delivery quote for their new pontoon trailer.

You can request a transportation quote from Calvin Johnson at Action Heavy Haul, LLC! His team of logistics experts will help plan out the perfect route to make sure you get the most affordable rate. Call directly at 541.622.6080

Another option is Uship. You can go to their website at www.uship.com and get an estimate. Simply go to their website, click the big green button that says "Get a Free Estimate" and put in your information. Then check your email for your quote. You may also call them at 800.698.7447 ext. 2.
